Ves screen pinout (modding)
#1
Ves screen pinout (modding)
Hi!
I have an dodge Journey rt 2009 EU model. Comes with all the ves entertainment system, nav external screen and back lcd screen.

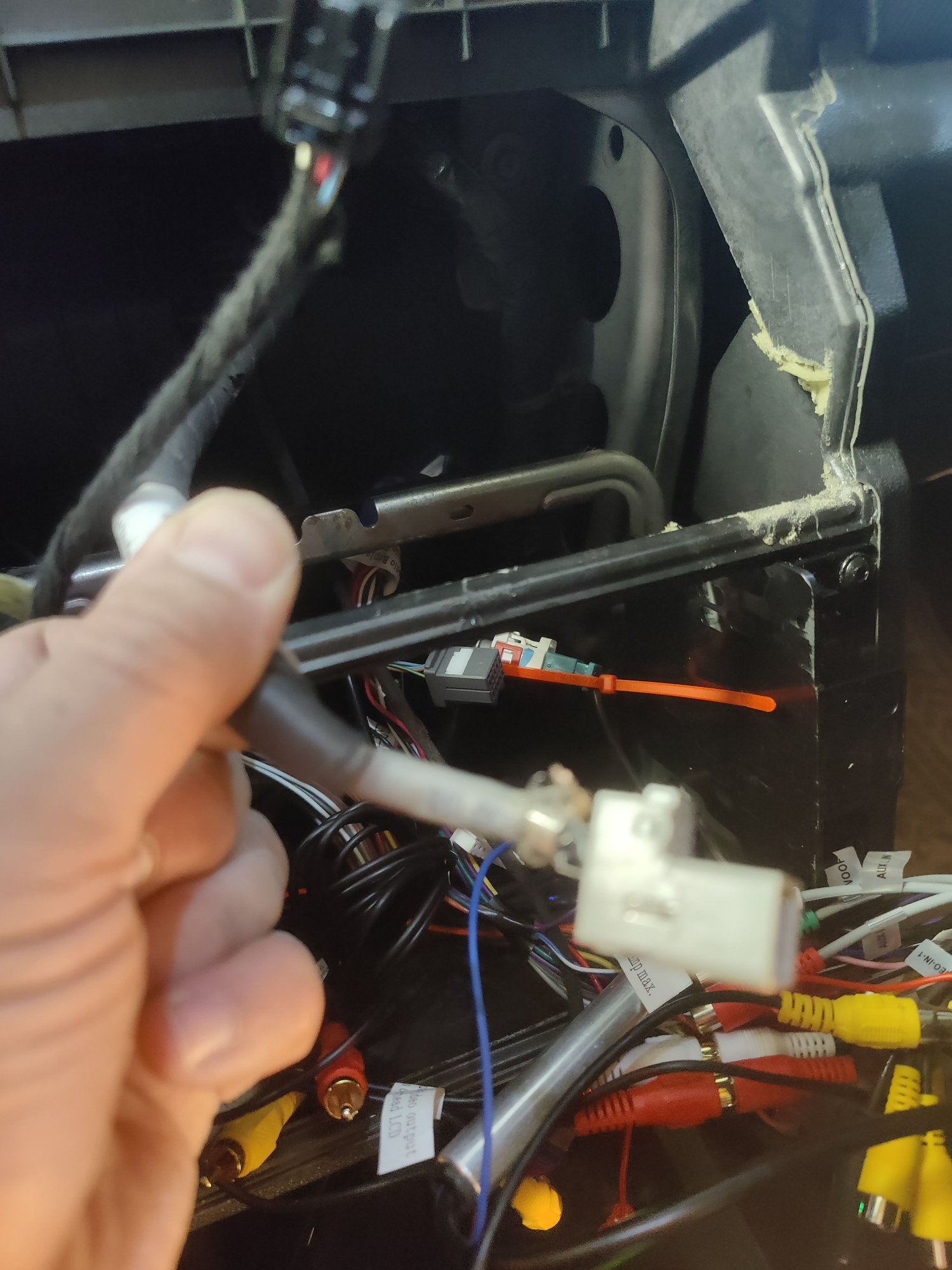

It runs factory mygig rex which means you have an external screen on the top of the center console above the center fans. Other Journeys seem to have a box here. Anyway the thing is that the head unit has gone haywire and it was time for an upgrade, bought an Android head unit and the cables for bus and so on. I have made everything to work somehow good but the only thing i wish i could fix is using the external nav lcd screen to my stereos output. I have a contact with 8 pins that im fairly sure is for this screen.
Does anyone know the pinout for this?
And do you need to power the screen and if so is it 12v?
My idea is to use a rca plug that i can cut and try to solder on to this. Thanks in advance!
Supplier code #63792ao Part #05064490ad
I have an dodge Journey rt 2009 EU model. Comes with all the ves entertainment system, nav external screen and back lcd screen.
It runs factory mygig rex which means you have an external screen on the top of the center console above the center fans. Other Journeys seem to have a box here. Anyway the thing is that the head unit has gone haywire and it was time for an upgrade, bought an Android head unit and the cables for bus and so on. I have made everything to work somehow good but the only thing i wish i could fix is using the external nav lcd screen to my stereos output. I have a contact with 8 pins that im fairly sure is for this screen.
Does anyone know the pinout for this?
And do you need to power the screen and if so is it 12v?
My idea is to use a rca plug that i can cut and try to solder on to this. Thanks in advance!
Supplier code #63792ao Part #05064490ad
